LOOP HANDLE BAG

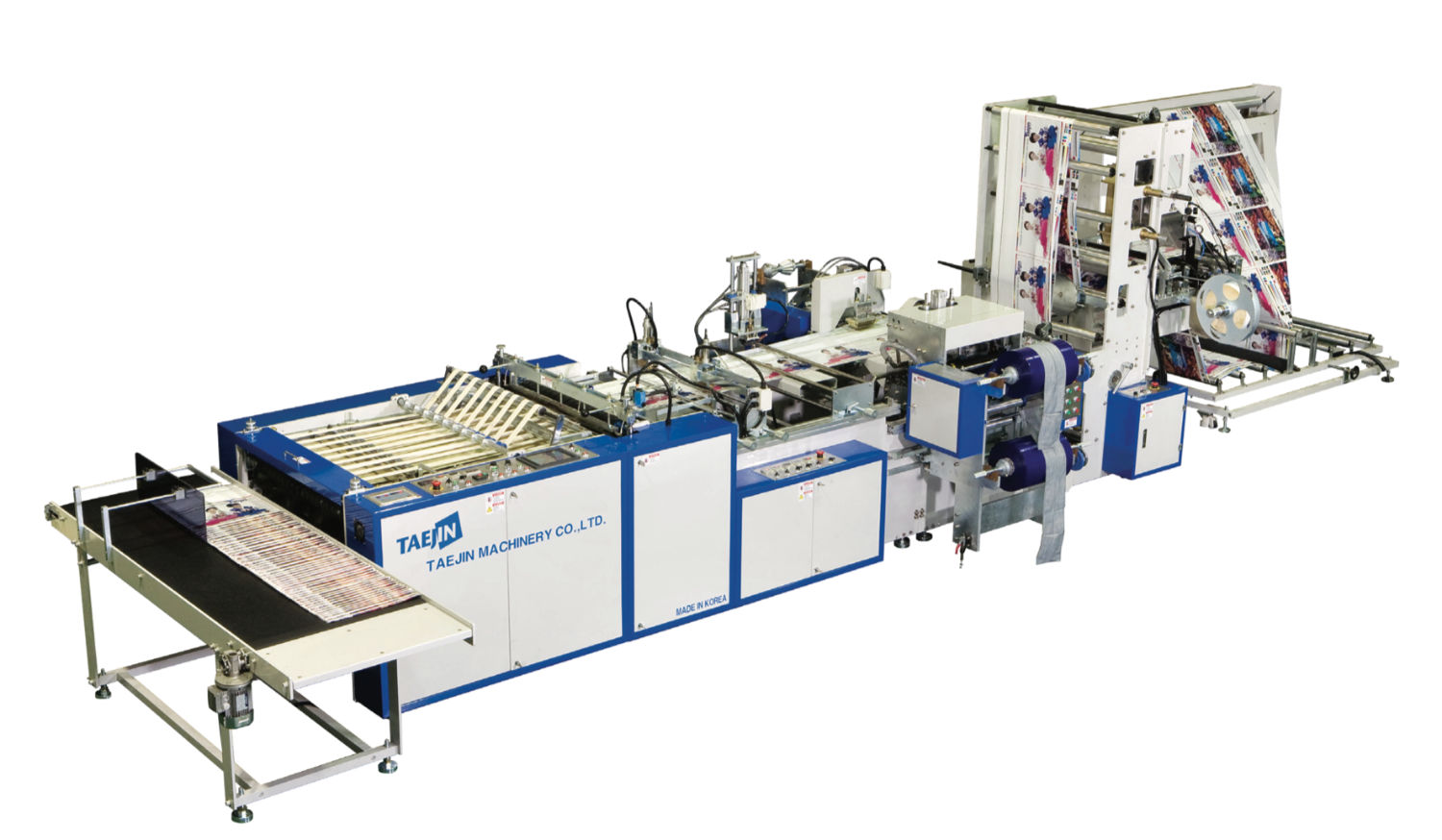

Side Welded Carrier Bag Machine — TJ-7022 / TJ-7012

CARRIER BAG

Loop, patch, and die-cut handle bags — shopping bags with attached carry handles.

Plastic bags with handles attached to the top, functioning like a shopping bag. The body film comes in two types — side-welded or bottom-welded — and the same line also produces die-cut handle bags with punched openings instead of attached handles.

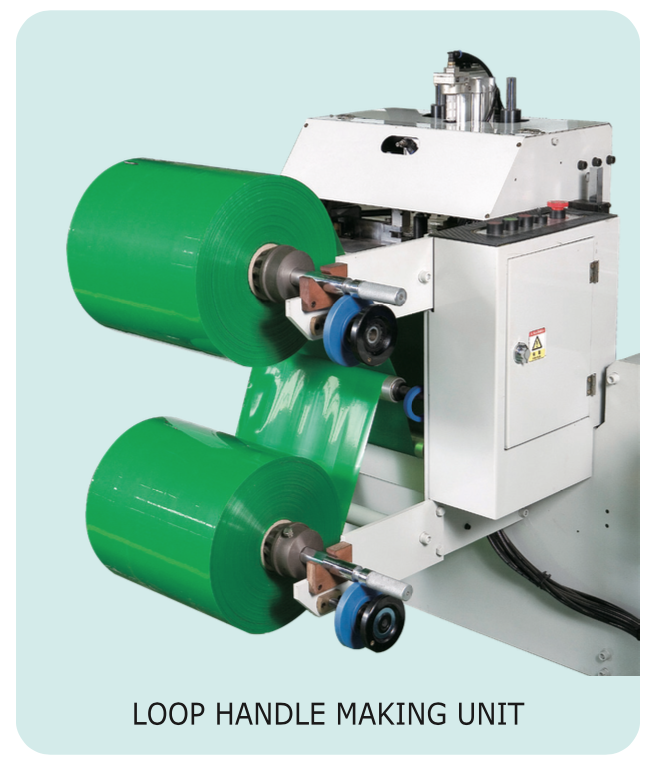

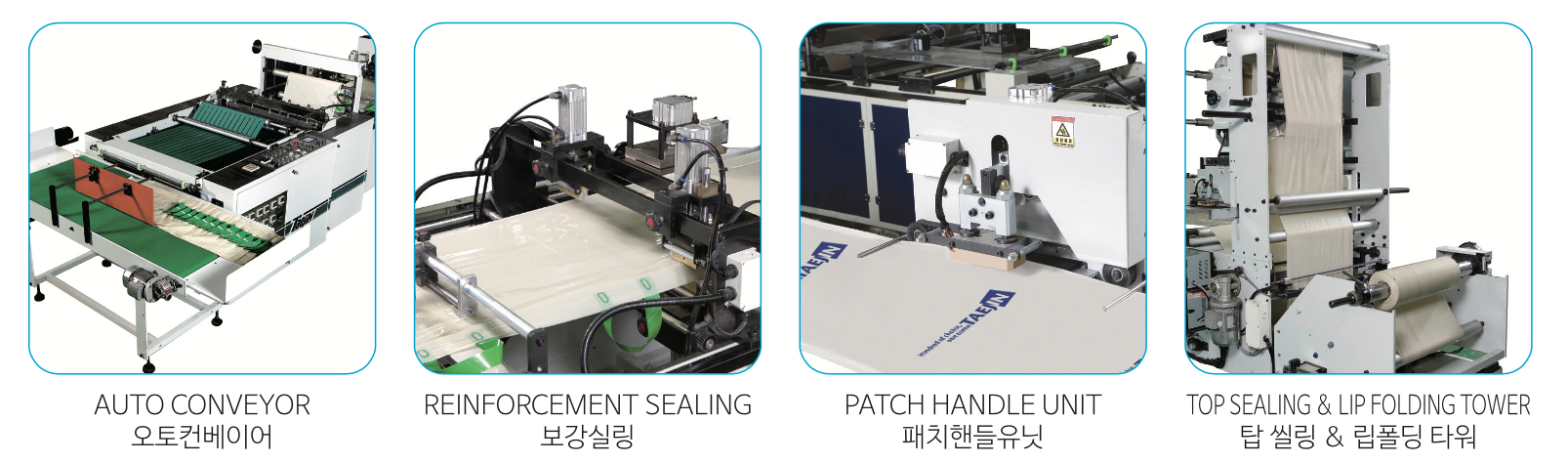

TJ-7022 LPD: integrated LOOP / PATCH / DRAW / DIE-CUT
TJ-7022L: Loop-only
TJ-7022P: Patch / Die-cut only
TJ-7012: Bottom-welded loop-handle dedicated
Up to 60 bags/min · multiple handle types

Inquire now

LOOP HANDLE series — specifications

Model	Bag width (mm)	Speed	Film thickness	Dimensions (m)
TJ-7022 LPD	Max 800	60 bag/min	40~100 mic	8.2 × 2.3 × 1.9
TJ-7022L	Max 800	60 bag/min	40~100 mic	8.2 × 2.3 × 1.9
TJ-7022P	Max 800	50 bag/min	40~100 mic	8.2 × 2.3 × 1.9
TJ-7012	280~600	60 bag/min	40~100 mic	4.7 × 4.5 × 1.4

LOOP HANDLE BAG

Loop, patch, and die-cut handle bags — shopping bags with attached carry handles.
